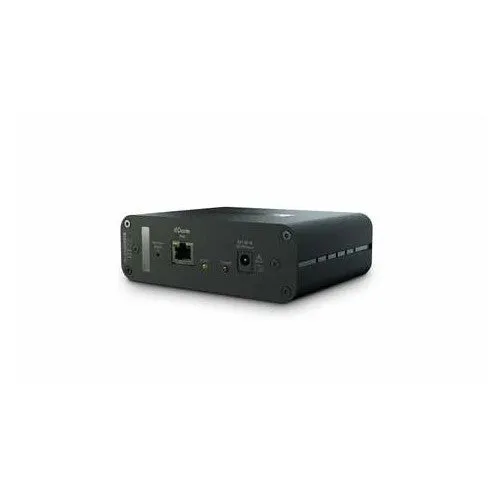

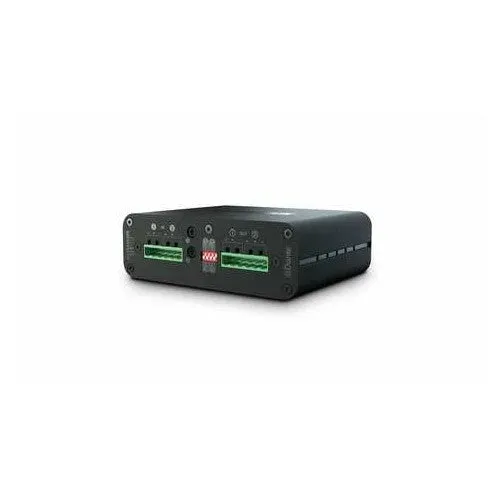

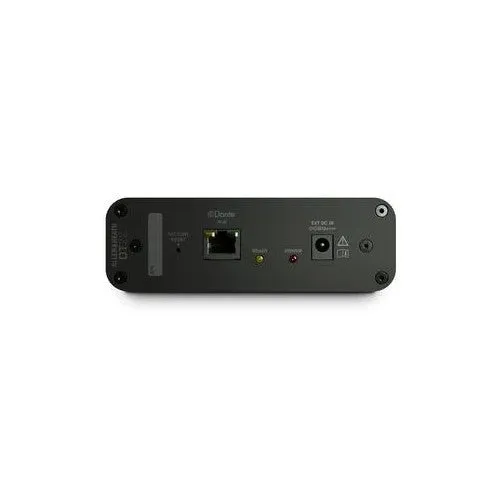

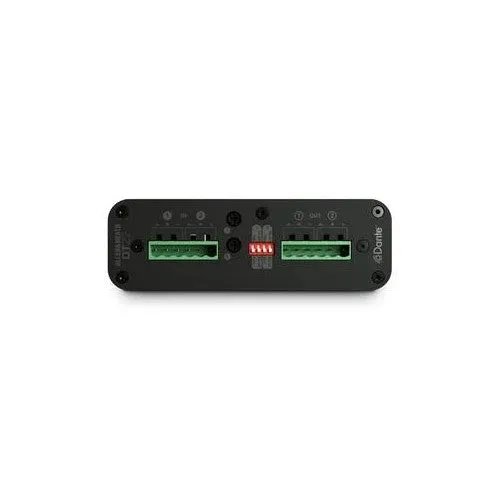

The compact DT22 48kHz/96kHz Dante interface allows convenient placement of two mic/line inputs and two line-outputs wherever they are needed.

Designed for fixed installations, the DT22 is equipped with standard Phoenix/euroblock connectors and can be easily mounted under tables, in a podium, or rack mounted. The unit can be PoE-powered or powered by a 12VDC power supply (not included) and can be used with any Dante-equipped Allen & Heath mixer or AHM system as well as third party Dante systems.

Allen & Heath DT-22-M Includes:

• DT-22-M

Allen & Heath DT-22-M Features:

• Dante 2X2 interface, 48kHz/96kHz
• Local gain control and mic/line switch
• Phoenix euroblock connectors
• 48V phantom power
• PoE powered or DC 12V (power supply not included)
• Housed in a rugged aluminum enclosure
• Includes ears for surface-mounting
• Optional DT-RK19 rack mounting kit (sold separately)

Allen & Heath DT-22-M Specifications:

• Mic/Line Inputs: Balanced Phoenix, 48V PP
  • Analog Gain: 0 to 55dB
  • Line Inputs: -20dB pad
  • Maximum Input Level: 30dBu (line in)
  • Input Impedance: >4k Ω (mic), >10k Ω (line)
• Line Outputs: Balanced Phoenix
  • Output Impedance:
  • Nominal Output: 4dBu = 0dB meter reading
  • Maximum Output: 22dBu
• Dante: 48kHz/96kHz
• Power:
  • DC Input: 12VDC, 1.25A (power supply not included)
  • Power Consumption: 10W max.
  • PoE Requirements: 802.3af, 15W
• Operating Temperature Range: 0 to 40 degrees C (32 to 104 degrees F)
• Dimensions: 5.1” wide x 3.9” deep x 1.7” high (130 x 100 x 42 mm)
• Weight: 1 lb. (0.5 kg)
