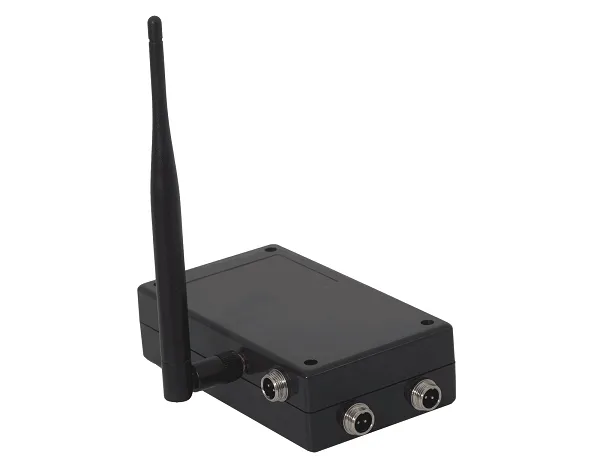

The PA-35 WiFi control box is used to integrate iOS and Android devices with linear actuators. The control box emits a WiFi signal and acts like a router, which allows a device to connect to it. Using the free Progressive Automations App, users will have full motion control over the actuators, including a record feature.

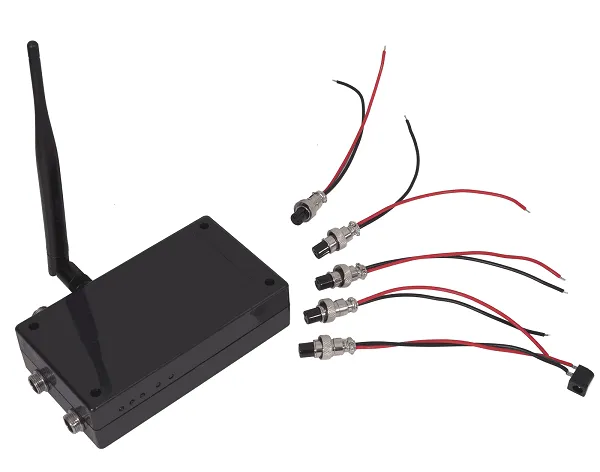

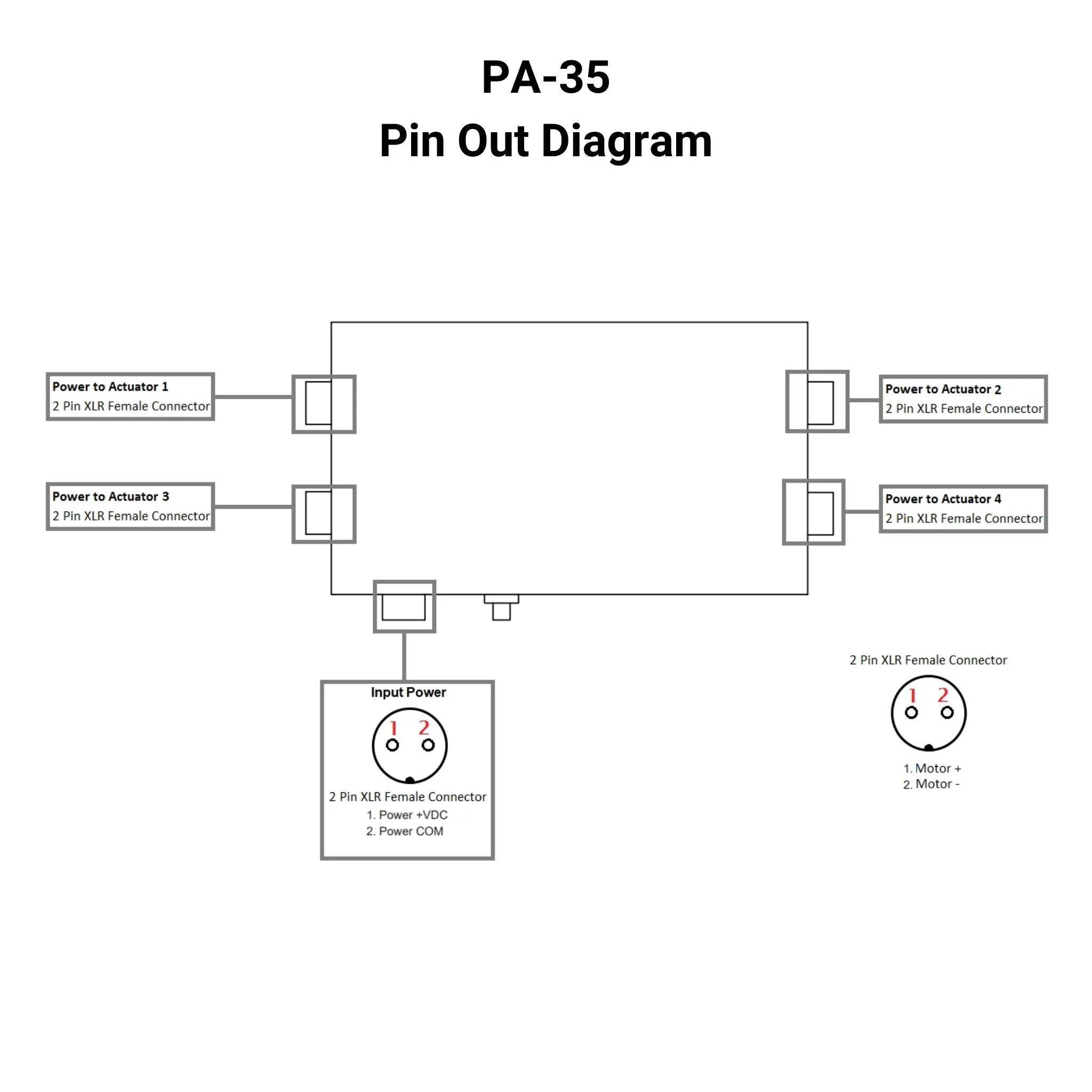

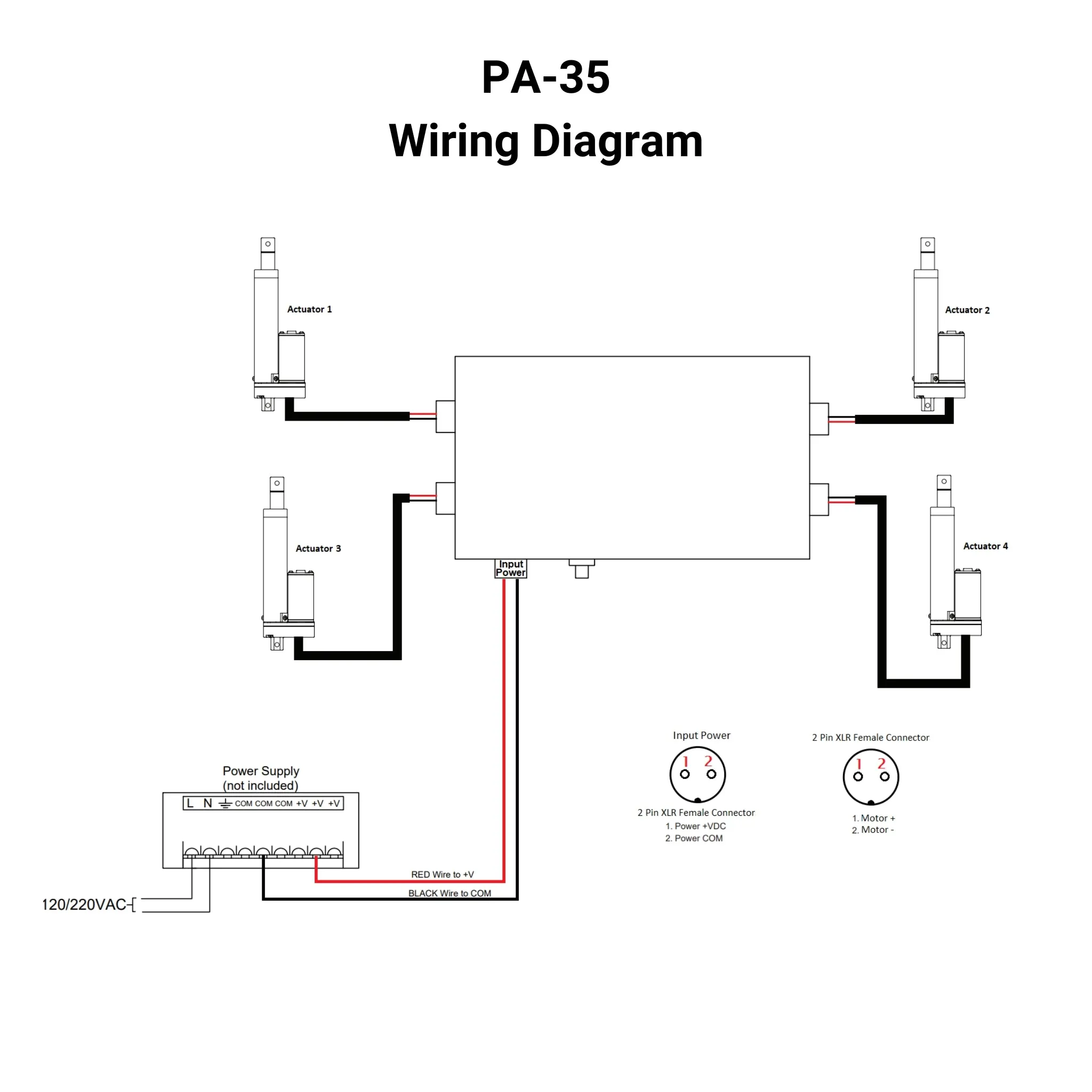

Using the included XLR connectors, linear actuators can be connected to 4 unique channels. Each channel has a maximum current rating of 10A, which allows for use with many of our units. It is important to ensure the 12VDC power supply has a sufficent current rating to support all connected units.

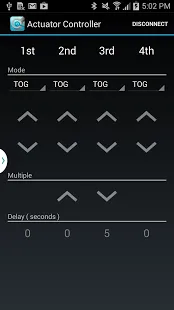

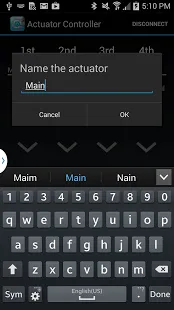

App Specifications:

•  Wi-Fi control of up to 4 channels (individual, parallel or combination).
•  Compatible with Android devices and iPhone devices.
•  Intuitive interface with easy-to-understand controls.
•  Time delay of up to 999 seconds for each actuator.
•  Momentary and non-momentary settings.
•  Ability to record and save actuator movements.

For more detailed information on the control box, please see the PA-35 User Manual available on the Progressive Automations  section. Search for the Progressive Automations App on the Google Play or App Store.

* Compatible with Android devices and iPhone devices for control of up to 4 channels (individual, parallel or combination at 12 VDC).
