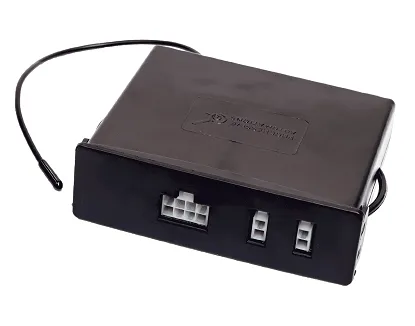

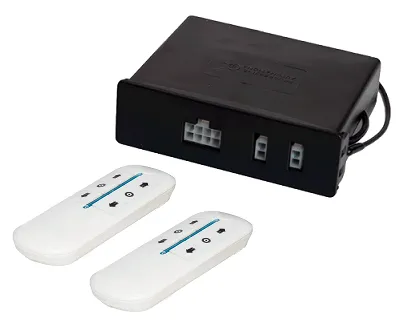

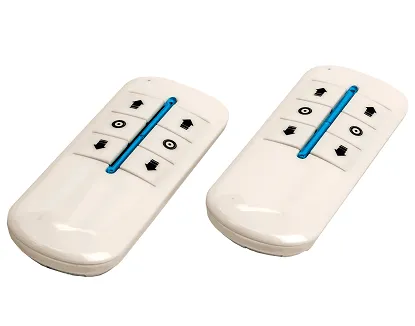

The PA-28 dual channel control box allows for full individual control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

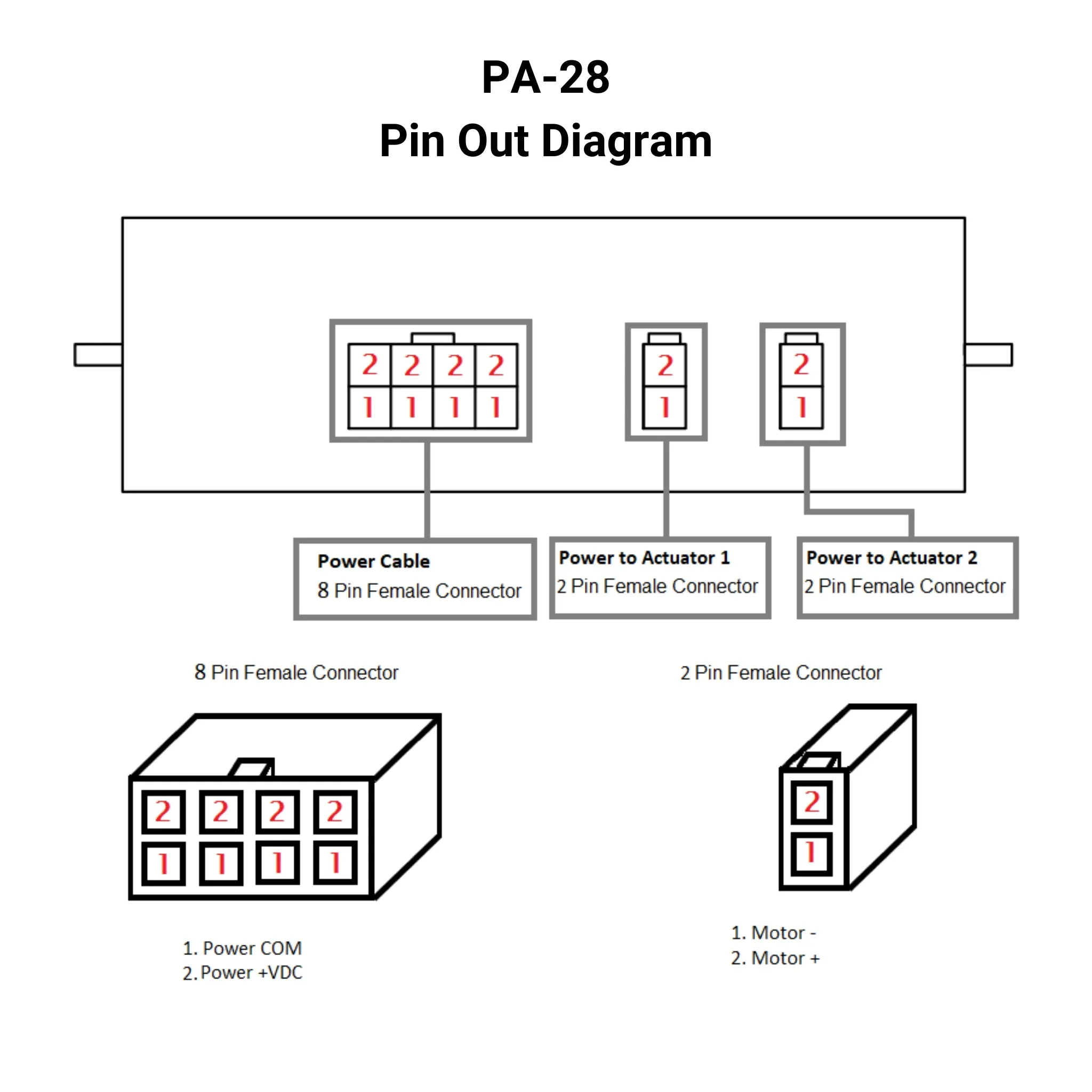

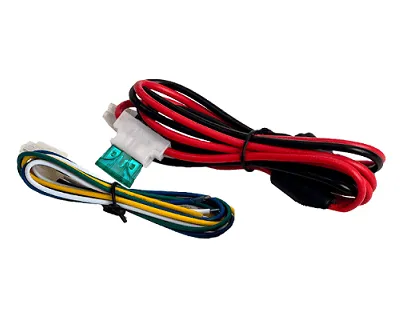

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-28 is designed to handle a maximum of 15A per channel.

Please see the PA-28 Data Sheet for information about controls, wiring, and troubleshooting.

* Individual control of linear actuators at 12 VDC.
